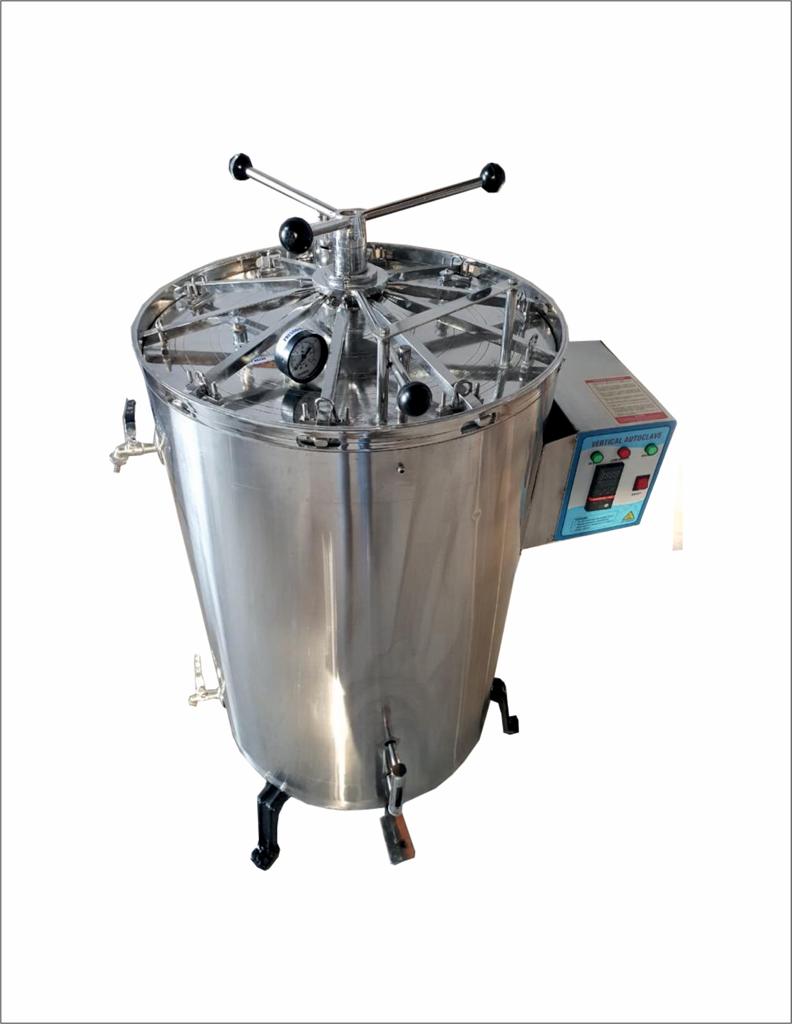

ILB – 145A Vertical Autoclave Triple Walled
Inner chamber & outer chamber made of highly polished stainless steel. Heater covers, stand and carrier/bucket are made of stainless steel. Lid made of thick die pressed stainless steel plate. Radial locking lid ensures user safety and safe locking. Lid is fitted with pressure gauge, spring loaded safety valve, manual exhaust valve & vacuum breaker as a safety device. Drain valve facilitates easy cleaning of the chamber. Molded joint less silicon rubber gasket. All internal joints are argon arc welded, ground and polished to give crevice free internals. Miniature circuit breaker for mains on/off plus safety of control panel. · Industrial grade energy efficient heaters reduce power bill drastically.
Description
TECHNICAL SPECIFICATION:
Sterilizing Pressure=1.2kgf/cm2 (15 psi) at 121C
Operating Pressure= from 15 psi to 22 psi (adjustable)
Power Supply=220x230V AC, 50/60 Hz
Pressure Vessel= SS 304 Grade Stainless Steel
External Wall=SS 304 Grade Stainless Steel
Top Lid=SS 304/SS Line
Basket= SS 304/202 Grade Stainless Steel
Optional:
• Automatic low-water level cut off-device
• Pressure Cut-off Switch
• Water level arrangement
• Dressing Bins for various sizes
• Thermal Printer (Chart type Recorder)
• Digital temperature indicator cum controller with set value and process value/digital timer.
• Fully Automatic System with HMI PLC based autoclave with data logger, digital pressure cum controller, digital temperature controlled system can be insttalled on order
• Microprocessor based digital temperature indicator cum controller with set value and process value/ timer and purging on/off fully automatic.
NOTE:
• CUSTOMISED SIZES CAN BE MADE ACCORDING TO THE REQUIREMENT
• WINGNUT MODELS ALSO AVAILABLE
