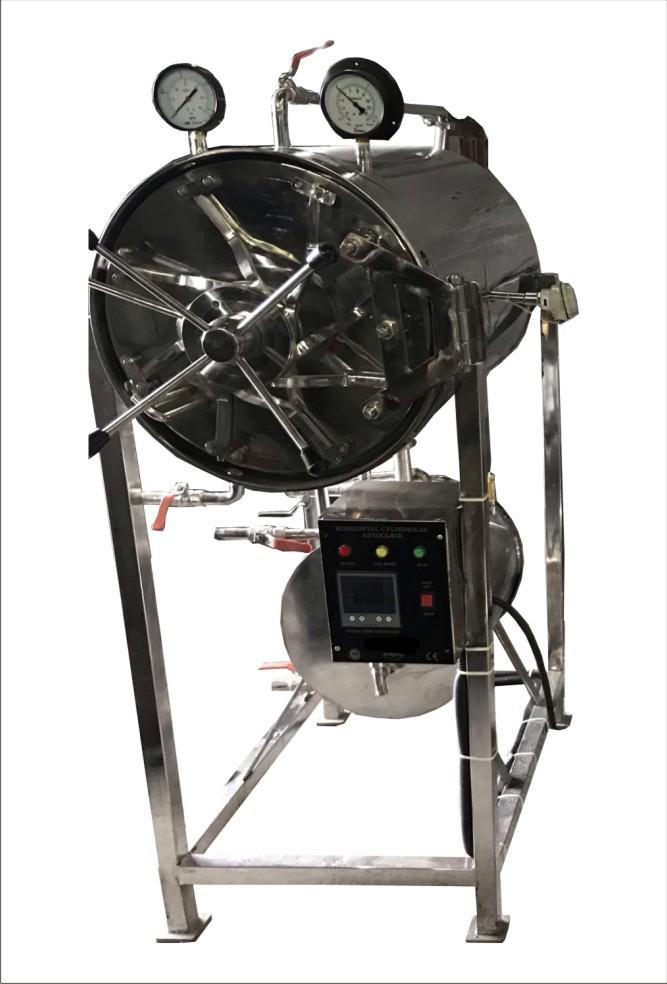

ILB – 146 Horizontal Autoclave (Cylindrical)
Inner chamber & outer chamber made of highly polished stainless steel. Heater covers, stand and carrier/bucket are made of stainless steel. Lid made of thick die pressed stainless steel plate. Radial locking lid ensures user safety and safe locking. Lid is fitted with pressure gauge, spring loaded safety valve, manual exhaust valve & vacuum breaker as a safety device. Drain valve facilitates easy cleaning of the chamber. Molded joint less silicon rubber gasket. All internal joints are argon arc welded, ground and polished to give crevice free internals. Miniature circuit breaker for mains on/off plus safety of control panel. · Industrial grade energy efficient heaters reduce power bill drastically.
Description
TECHNICAL SPECIFICATION:
Sterilizing Pressure=1.2kgf/cm2 (15 psi) at 121C
Operating Pressure= from 15 psi to 22 psi (adjustable)
Power Supply=220x230V AC, 50/60 Hz
Pressure Vessel= SS 304 Grade Stainless Steel
External Wall=SS 304/202 Grade Stainless Steel
Top Lid=SS 304 Grade Stainless Steel
Basket= SS 304/202 Grade Stainless Steel
INCLUDING:
• Automatic Pressure Cut-off Switch
• Digital Temperature Indicator cum Controller
• Automatic Low Water Level Cut-off
• Water Level Indicator
• Stainless Steel Basket
• Vacuum Breaker
OPTIONAL:
• Fully Automatic PID Purging System
• Fully Automatic System with HMI PLC based autoclave with data logger, digital pressure cum controller, digital temperature controlled system can be insttalled on order
• Multi Port valve
NOTE:
Double Walled/Triple Walled both available
